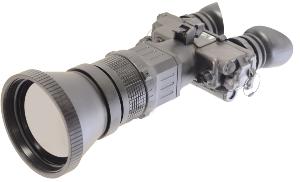

TIB-5100CG-17 Thermal Imaging Binoculars

(Code: TIB-5100CG-17)

Email to a Friend
14,880.00
Available in 15 days
Add to cart
TIB-5100CG-17 Thermal Imaging Binoculars

The TIB-5000 series Thermal Imaging Binoculars are another one of GSCI's "success stories". Great tool for Surveillance, Search & Rescue, Permiter Control, and Vehicle ID, the TIB-5000 are lightweight and rugged units with intuitive controls that offer and ease-of-use not seen in many thermal imagers on the market.

While most of the rival systems have FPA format 320x240, 9-30 Hz, GSCI's TIB-5000 offers as the minimum performance guarantee FPA's with 384x288, 50-60 Hz or top notch 640x480, 17 um. Such increase of the resolution and frame rate provide to the USer with a smoother-looking image, and clearer detail from increased shading/gradation. Those who have used TIB-5000 at least once, say that the higher FPAs really make a difference. Frame Rate lag is almost zero during quick panning and tracking of fast-moving objects.

Ease of use is important in devices like the TIB-5000 because they are often shared among several officers or team members and the ability to pick up a unit and operate it effectively with minimal training is a an invaluable asset. Controls are well-placed and easy to manipulate, even with gloves. The TIB-5000 series can be used head/helmet, hand held and tripod mounted, equipped with high quality, fast germanium lenses featuring optical magnification from 1X and up to 6X and low F-number. This allows to achieve impressive Long Range detection and recognition capabilities. Systgems are powered by just 2 pcs AA Lithium batteries with up to 7 hours continuous operation. The TIB-5000 also features the ability to be hooked up to an external video monitor or recorder.

Add in the fact that these units cost several thousands less than the "government purchse-only" devices and available as commercial version to general pubic, it's clear that TIB-5000 is a Winner!

TECHNICAL SPECIFICATIONS



F.P.A. Format
640x480, 17um
F.P.A. Material
ASi Uncooled
Thermal Sensitivity (mK)
60
Refresh Rate (Hz)
30
Lens System (mm)
100; F1.4
Optical Zoom
4.5X
Digital Zoom
9X-18X
Diopter Adjustment
+2 / -6
Tripod Mountable
Yes
Powered By AA Lithium (1.5V)
2pcs.
Continuous Operation Time (hrs.)
up to 7
OLED Micro Display Resolution
800x600
Detection of Human Size Object (m)
~2400
Detection of Idling Car Size Object (m)
~3000
Dimensions (mm)
290x145x120
Weight (grams)
1200
